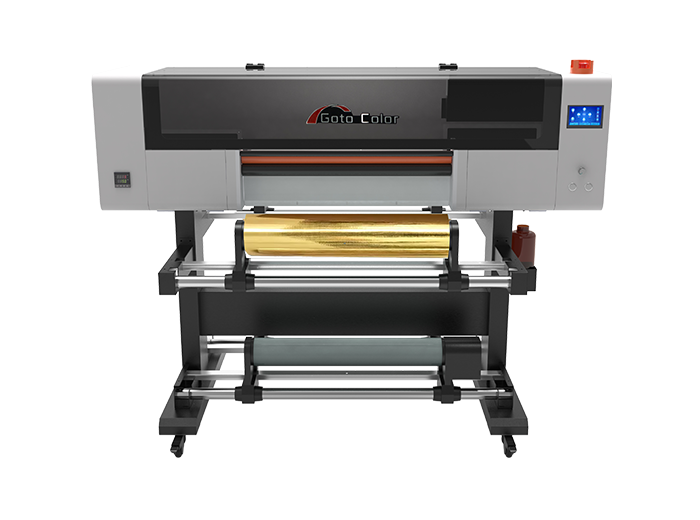

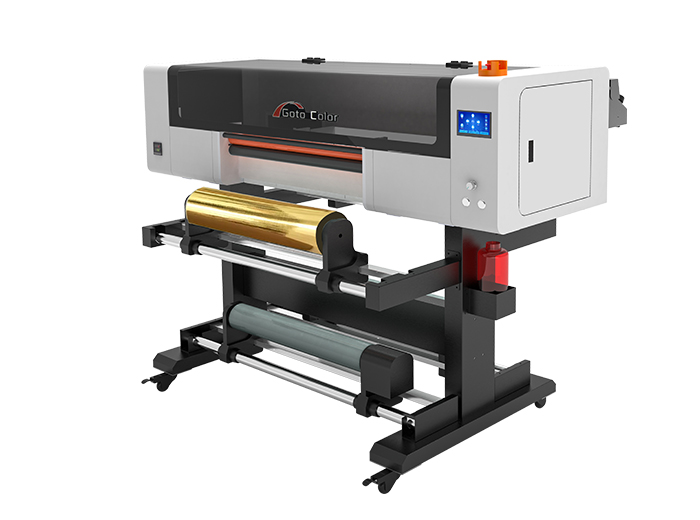

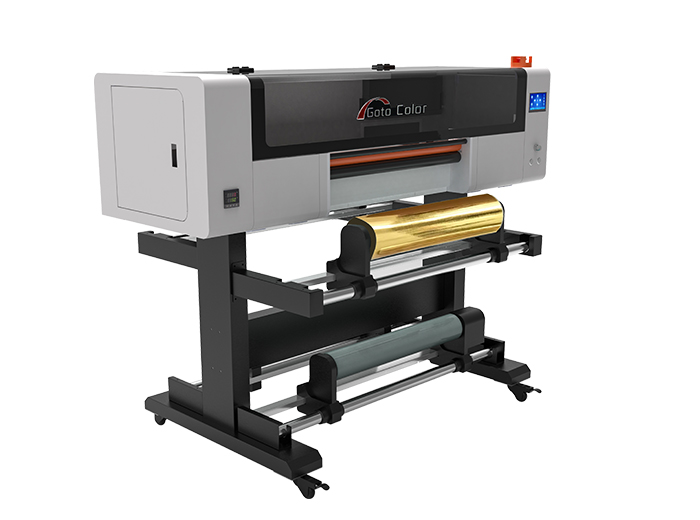

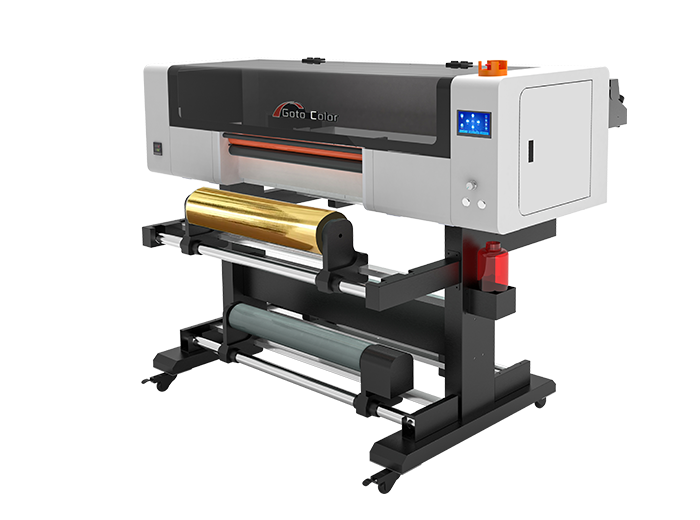

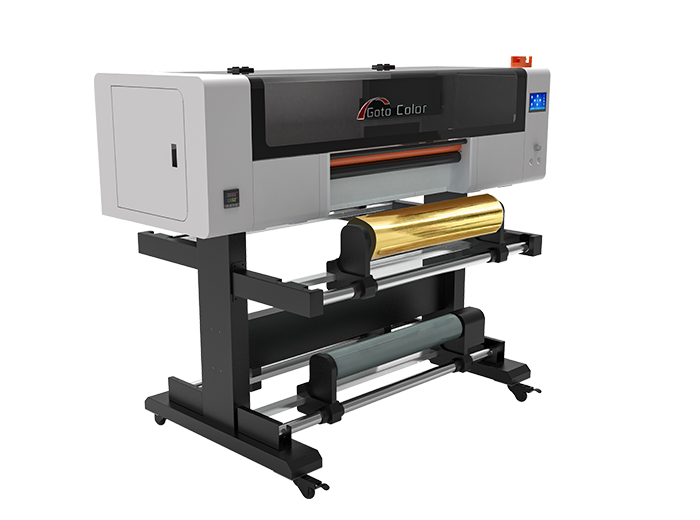

GT- Gold Foil UV DTF Printer

Goto Color develops its latest technology, Gold Foil UV DTF printing, which delivers exceptional solutions for partial gold and silver printing as well as full gold and silver printing. Equipped with 4 Epson heads, this technology prints the glue directly onto materials and the sticker apply to such as paper products, packaging boxes, gift boxes, glass, metal, wood, and more.

Print Head

4 pcs Epson TX800 heads

Color

CMYK+W+V+Glue

Print Width

600mm

Print Speed

1.8-4.5 sqm/h

Print Software

photo print

Working Voltage

AC-220V/110V 50Hz/60Hz

Quote Now

Send E-mail

Share With:

Description

Gold Foil UV DTF printer

Gold Foil UV DTF (Direct to Film) printing is a specific application of UV printing technology combined with the Direct to Film transfer method. This method involves printing designs onto a gold/silver film substrate by using UV-curable ink, and then transferring the design onto various surfaces(better hard surfaces), such as metal, acrylic, pvc, wood, leather, ceramics, glass etc.

Quote Now

Specifications

Technical Parameters:

Model	GT-Gold Foil UV DTF Printer
Printhead Type	EPS TX800
Ink color	C/M/Y/K/W/V/Glue
Ink tank volume	500ml tank for each color
Ink supply system	Negative pressure continuous ink supply
Print width	600mm
Print material	AB film+Gold/Silver film
Rip software	Photoprint
Working voltage	AC-220V/110V 50Hz/60Hz
Power	350w
Working Environment	Temperature20℃-30℃Humidity 40%-60%Rh
Machine Size	1380mm 8601000mm（LxWxH）
Package Size	1460mm x 890mm x 800mm（LxWxH）

Gold Foil UV DTF Printer Process

What's the process of Gold Foil UV DTF printer?

The process of gold foil UV DTF printer combines UV printing technology with gold foil transfer technology. First, design the artwork, then UV print the pattern, and finally complete the lamination and gold foil transfer. After getting the printed sticker, you can transfer the pattern to the target substrate.
